PRODUK

Kami memproduksi berbagai macam pipa baja dengan standar sertifikasi domestik dan Internasional untuk berbagai macam aspek kehidupan. Jaminan mutu produk selalu dilakukan perusahaan agar kami dapat memberikan produk dengan kualitas yang tahan lama dan juga tahan uji. Selain itu, pipa kami telah melalui lebih dari 10 tahap pengujian untuk menghasilkan pipa baja dengan kualitas terbaik*.
*untuk jenis pipa tertentu

Button

Structural Pipes
Button
Water Pipes
Button
Oil & Gas Pipes
Button
Stainless Steel Pipes
Button
GI Pipes
Button
Steel Poles
Button

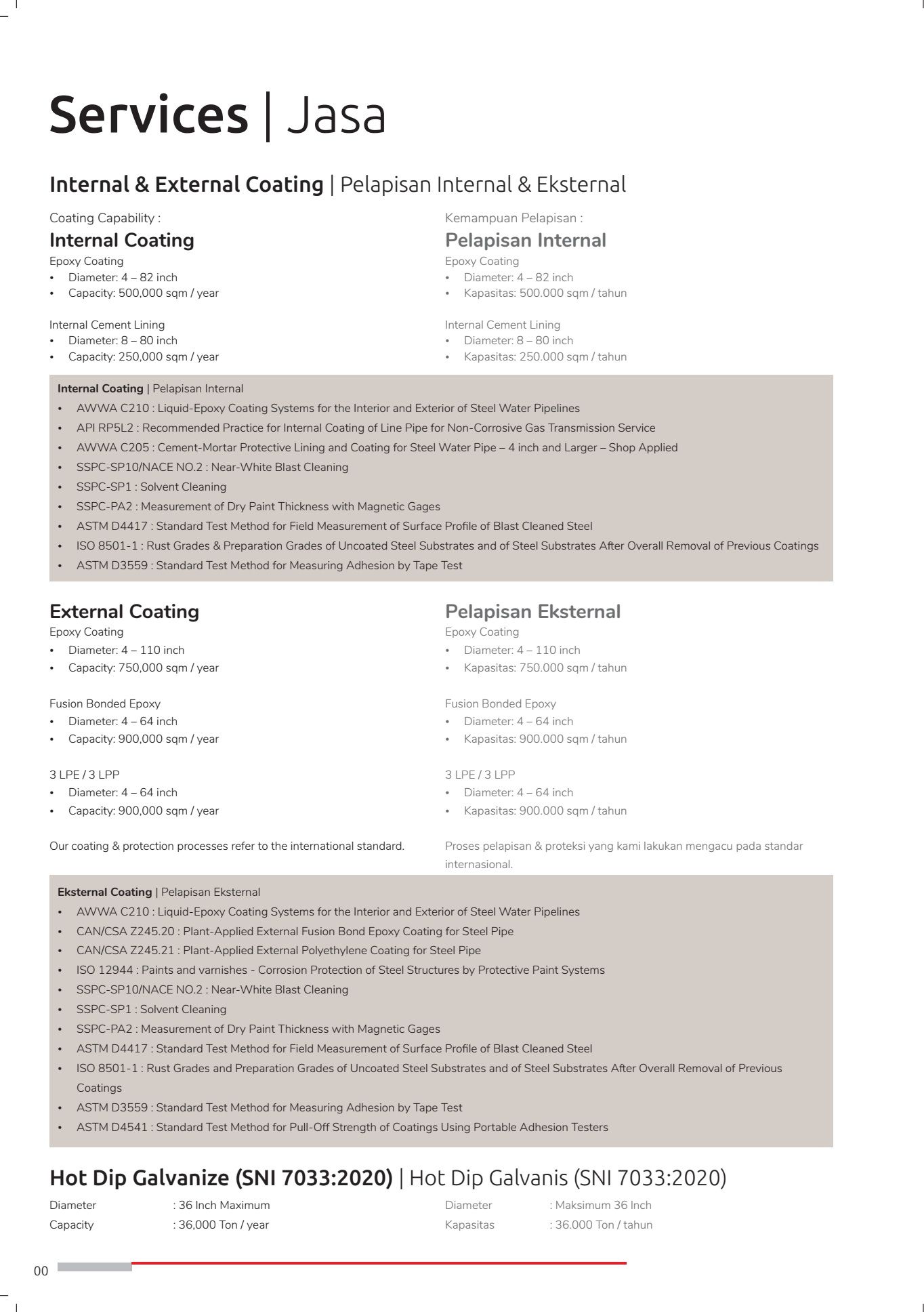

SERVICES

1. Coating Capabilities

Internal Coating

Epoxy Coating
Diameter : 4 – 82 inch
Capacity : 500.000 sqm / year

Internal Cement Lining
Diameter : 8 – 80 inch
Capacity : 250.000 sqm / year

External Coating

Epoxy Coating
Diameter : 4 – 110 inch
Capacity : 750.000 sqm / year

Fusion Bonded Epoxy
Diameter : 4 – 64 inch
Capacity : 900.000 sqm / year

3 LPE / 3 LPP
Diameter : 4 – 64 inch
Capacity : 900.000 sqm / year
2. Our coating & protection refers to the international standards
Internal coating :
- AWWA C210 : Liquid-Epoxy Coating Systems for the Interior and Exterior of Steel Water Pipelines
- API RP5L2 : Recommended Practice for Internal Coating of Line Pipe for Non-Corrosive Gas Transmission Service
- AWWA C205 : Cement-Mortar Protective Lining and Coating for Steel Water Pipe – 4 inch and Larger – Shop Applied
- SSPC-SP10/NACE NO.2 : Near-White Blast Cleaning
- SSPC-SP1 : Solvent Cleaning
- SSPC-PA2 : Measurement of Dry Paint Thickness with Magnetic Gages
- ASTM D4417 : Standard Test Method for Field Measurement of Surface Profile of Blast Cleaned Steel
- ISO 8501-1 : Rust Grades and Preparation Grades of Uncoated Steel Substrates and of Steel Substrates After Overall Removal of Previous Coatings
- ASTM D3559 : Standard Test Method for Measuring Adhesion by Tape Test
External Coating :
- AWWA C210 : Liquid-Epoxy Coating Systems for the Interior and Exterior of Steel Water Pipelines
- CAN/CSA Z245.20 : Plant-Applied External Fusion Bond Epoxy Coating for Steel Pipe
- CAN/CSA Z245.21 : Plant-Applied External Polyethylene Coating for Steel Pipe
- ISO 12944 : Paints and varnishes - Corrosion Protection of Steel Structures by Protective Paint Systems
- SSPC-SP10/NACE NO.2 : Near-White Blast Cleaning
- SSPC-SP1 : Solvent Cleaning
- SSPC-PA2 : Measurement of Dry Paint Thickness with Magnetic Gages
- ASTM D4417 : Standard Test Method for Field Measurement of Surface Profile of Blast Cleaned Steel
- ISO 8501-1 : Rust Grades and Preparation Grades of Uncoated Steel Substrates and of Steel Substrates After Overall Removal of Previous Coatings
- ASTM D3559 : Standard Test Method for Measuring Adhesion by Tape Test
- ASTM D4541 : Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers

Cold Rolled Coil

Thickness : 0.25mm – 3.00mm
Width : 500mm – 1270mm
Weight : 20 Ton Max
Length : -
OD : 1800mm Max
ID : 500mm – 800mm
Hot Rolled Coil

Thickness : 0.90mm – 12mm
Width : 500mm – 1550mm
Weight : 25 Ton Max
Length : -
OD : 2200 Max
ID : 500mm – 800mm
Stainless - Steel

Thickness : 0.50mm – 4.00mm
Width : 500mm – 1250mm
Weight : 20 Ton Max
Length : -
OD : 1800mm Max
ID : 500mm – 800mm
3 LPE / 3 LPP
Diameter : 4 – 64 inch
Capacity : 900.000 sqm / year

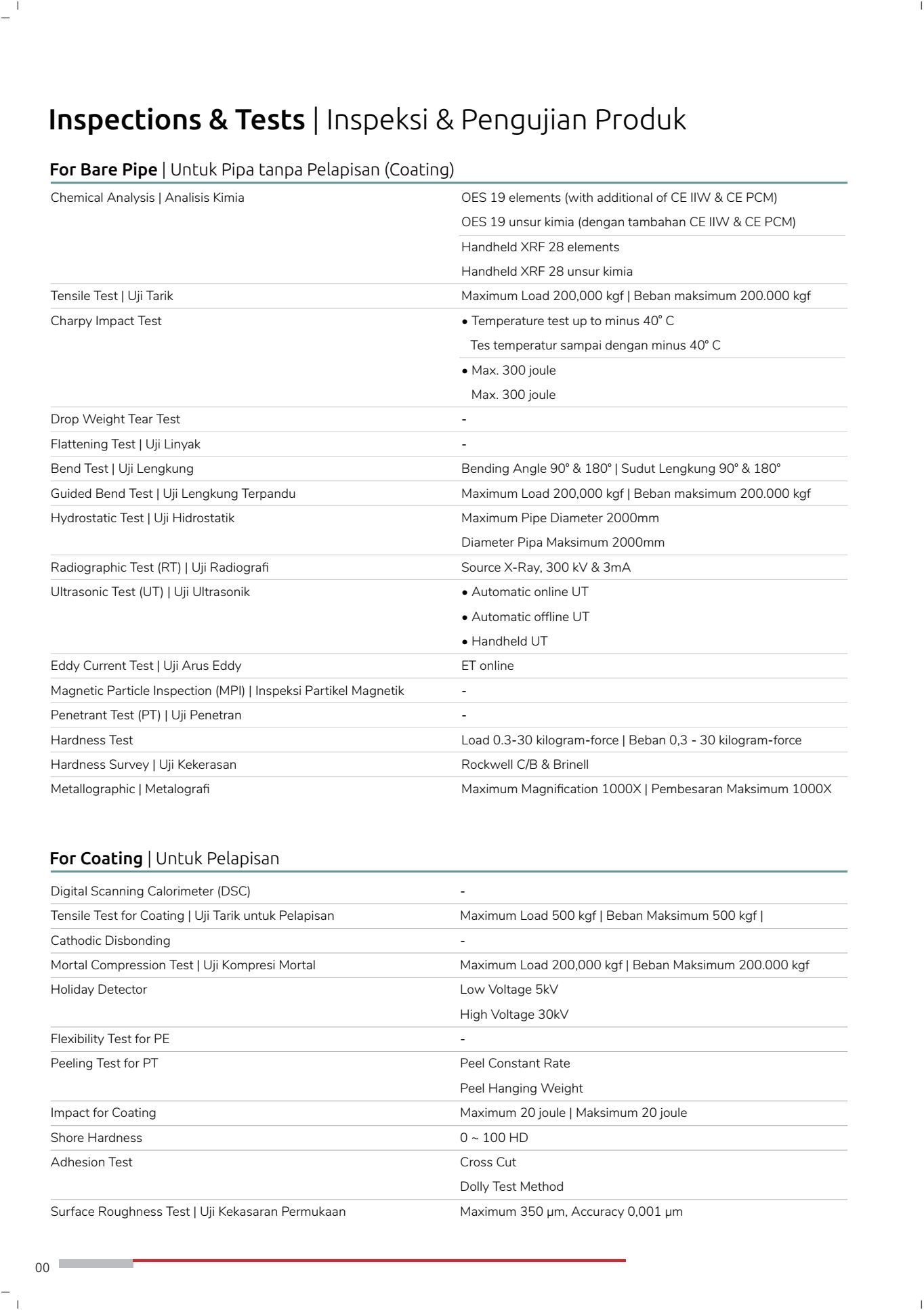

INSPECTION & TEST

Various inspections and tests have been carried out on our products in step by step process to final products control, to ensure the quality and standard specification of our products. (* depend on customer requirement)
